Features

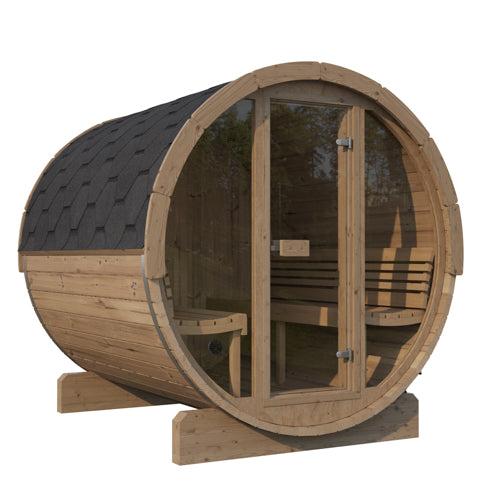

SaunaLife Model E8G Sauna Barrel Glass Front
- Thermo-Spruce materials (lasts up to 2X longer than Cedar)
- Designed for ergonomic sauna bathing experiences
- Spacious 6’-5” interior height
- Engineered for simple DIY installation (1-day, 2-persons)
- Industry-leading wall, bench, and backrest material thicknesses
- Full front glass view
- Superior thermal resistance (R-value)
- Curved Thermo-Aspen benches for bather comfort
- Premium arched backrest for all body sizes
- Dual floor drains for effective water elimination

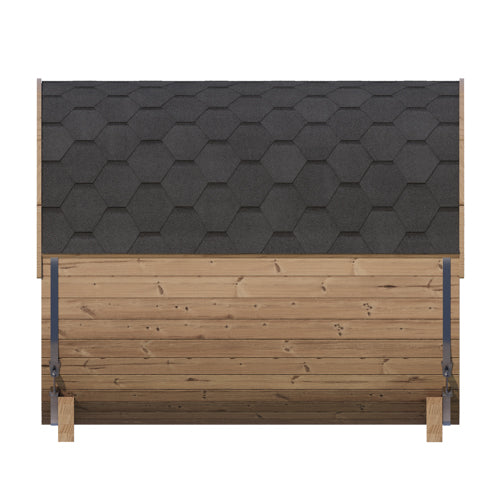

- Black shingle roof kit for weather-tight installation
- Roof drip edge for rainwater management
- Tempered bronze glass (5/16” thick)
- Enhance bathing ambiance with E MOOD lighting upgrades
- Heavy-duty stainless steel barrel bands (1-7/8” wide x 1/8” thick)
- Paraffin oil is provided to enrich and preserve sauna barrel luster
- Extra Thermo-Spruce staves to ensure success (2)
- Sauna heater guard

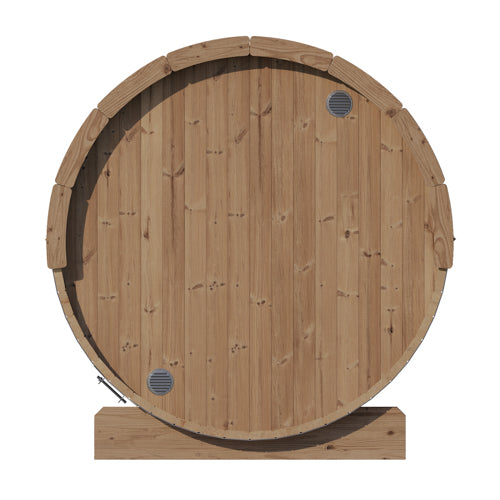

- Intake and exhaust air vents
- Exterior dimensions - 87” long and 81” diameter
- Interior dimensions - 78-½” long and 77” diameter
- Up to 6 bathers
- Designed by SaunaLife and handcrafted in Northern Europe
Thermo-Spruce Barrel Sauna Advantages
- Lasts up to 2X longer than Cedar
- Superior thermal resistance (R-value)
- Eco-friendly
- Chemical-free
- Golden color
- Ideal sauna use (stable)
- Rustic tight knot charm
White LED Light System with Wi-Fi App
- Dottless white glowing LED lighting
- Wi-Fi, app-based operation capability
- Wireless handheld remote (IP20) and control mounting cradle
- Water and heat led and wire connections (IP67)
- Flush or articulating mounting clips to set the ideal scene
- Low voltage (24-volt DC) operation for bathing safety
- 30’ light cable (IP67) to suit all installation applications
Specifications
| SaunaLife Model E8G Sauna Barrel Glass Front Specifications |
| Model |
E8G |
| Barrel Material |
Thermo-Spruce |
| Bench & Backrest Material |
Thermo-Aspen |
| Interior Dimensions |
78.5" L × 77" Diameter (199.4 cm × 195.6 cm) |
| Exterior Dimensions |
87" L × 81" Diameter (221 cm × 205.7 cm) |
| Bench Depth |
17.8" (45.2 cm) |
| Stave Thickness |
1.65" (4.2 cm) |
| Shipping Dimensions |
88" L × 44" W × 41" H (223.5 cm × 112 cm × 104 cm) |
| Product Weight |
1544 lbs (700 kg) |
| Operating Voltage |
24 VDC |
| Wattage |
18.69 W |
| Connection Type |
IP67 Twist Lock 2 Pin |
| IP Rating |
IP67 |
| Certification |
cETLus / SGS / TUV |
| Input Voltage |
120 VAC |
| Output Voltage |
24 VDC |
| Rated Power |
90 W |
| Certification |
UL, CE, FCC |
Includes
SaunaLife Model E8G Sauna Barrel Glass Front
- Full-length Thermo-Spruce staves (1.65” thick)
- Benches of Thermo-Aspen (1.1” bench tops, no knots)
- Backrest of Thermo-Aspen (1.1” rests, no knots)
- Full front glass view
- Tempered bronze glass door
- Stainless steel barrel bands
- Black roof shingle kit
- Spruce cradles
- Spruce fascia boards
- Air intake and exhaust vents
- Extra staves (2)
- Fastener kit
- Paraffin oil, 16.9 oz bottle (500ml)
- Installation instructions
White LED Light System with Wi-Fi App
- White LED light (2)
- Wi-Fi, app-based operation
- Wireless handheld remote & mounting cradle
- 90W power supply
- Driver
- 30’ light cable
- Mounting clips, articulating (3)
- Mounting clips, flush (3)
- Installation instructions
Manual
SaunaLife Model E8G Sauna Barrel Glass Front
Description
SaunaLife Model E8G Sauna Barrel Glass Front
The SaunaLife ERGO-Series Outdoor sauna barrels were designed and engineered by sauna enthusiasts to be the most comfortable, durable, and attractive barrel saunas you can buy.
- Thermo-Spruce materials (lasts up to 2X longer than Cedar)
- Designed for ergonomic sauna bathing experiences
- Spacious 6’-5” interior height
- Engineered for simple DIY installation (1-day, 2-persons)
- Industry-leading wall, bench, and backrest material thicknesses
- Full front glass view
- Superior thermal resistance (R-value)
- Curved Thermo-Aspen benches for bather comfort
- Premium arched backrest for all body sizes
- Dual floor drains for effective water elimination
- Black shingle roof kit for weather-tight installation
- Roof drip edge for rainwater management
- Tempered bronze glass (5/16” thick)
-
Enhance bathing ambiance with E MOOD lighting upgrades
Model E8G
The SaunaLife ERGO-Series Outdoor sauna barrels were designed and engineered by sauna enthusiasts to be the most comfortable, durable, and attractive barrel saunas you can buy.

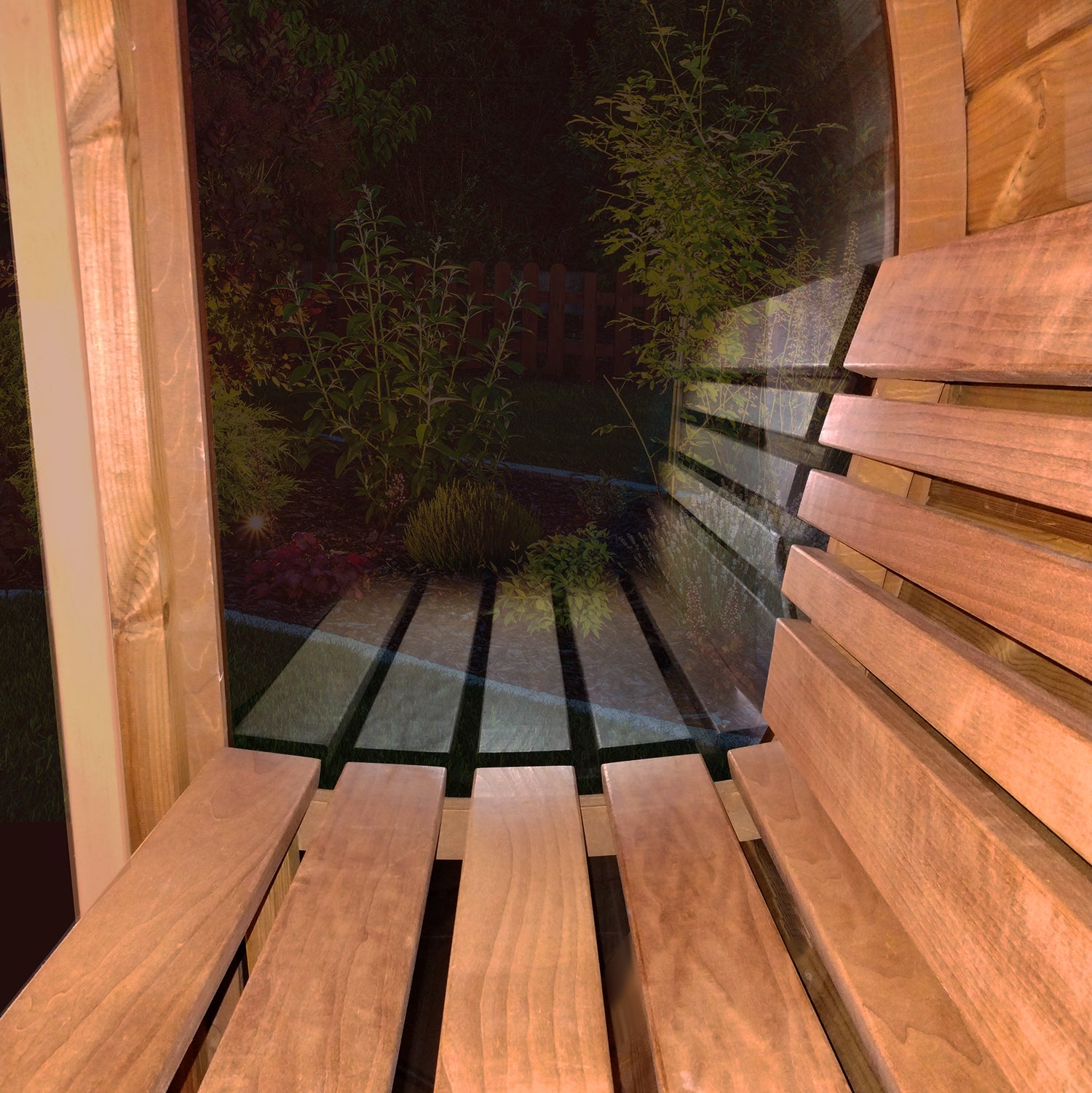

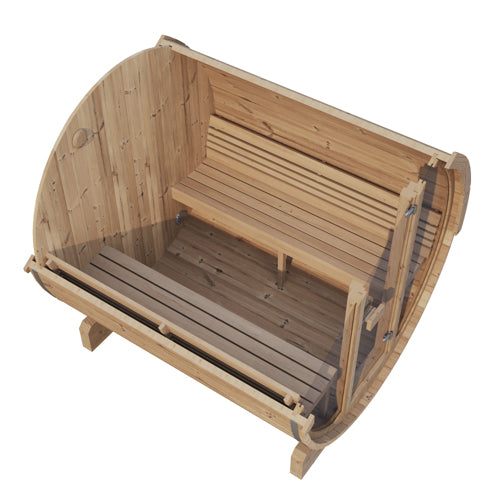

Ergonomics – Barrel Sauna Comfort
Bathing comfort cannot be overlooked when investing in an outdoor sauna barrel. The diameter of the barrel and the bench/backrest configuration must be considered. Barrels with a small diameter may be priced lower (less materials), but the tradeoffs are door height, bench comfort, and headroom. Smaller diameter barrels have a tighter arc which can create seating posture challenges, impact standing upright, and require one to duck upon entry and exit. ERGO Series Sauna Barrels benefit from a 6’5” interior height. Due to its large diameter, benches can be ergonomically contoured and formfitting. The generous barrel arc can support an expansive and arched backrest for true lumbar support. Touch and feel were not ignored when selecting the knot-free, silky-smooth grade-A Thermo-Aspen seating material designed to hug most any body size.

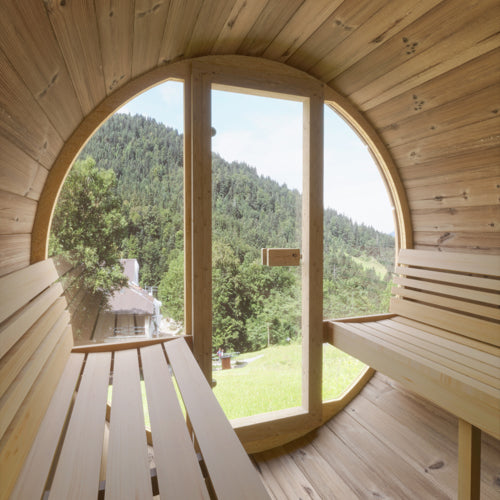

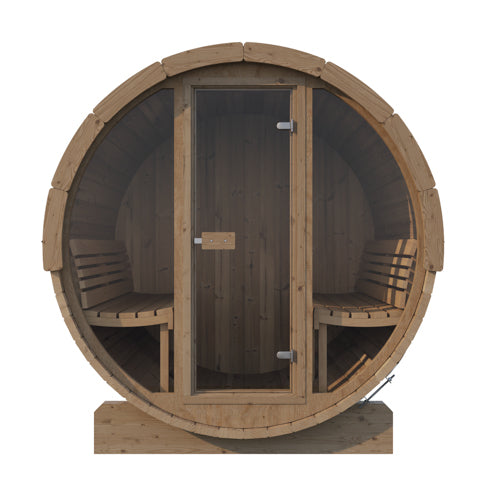

Full-glass front wall
Nothing adds to a spacious feeling like expansive windows. The Model E7G features bronzed, full-height, tempered glass sidelight windows that, combined with the matching tempered glass door, create a full glass front wall. The natural light will open up the space to create an incredibly airy and relaxing sauna while providing amazing views of the outdoors.
Durability – A lifetime of outdoor bathing pleasure
Did you know that Thermo-Spruce lasts up to 2X longer than Cedar wood? Every SaunaLife barrel begins with industry-leading 1.65” thick full-length staves that encapsulate the sauna and provide exceptional thermal resistance (R-value). This chemical-free, eco-friendly wood is dimensionally stable and ideally suited for outdoor saunas. We even build showers out of it! Wood thickness is the theme in the SaunaLife ERGO Series and provides bathers with ergonomically crafted benches and backrests from Thermo-Aspen (1.1” thick and 3-1/2” wide) nearly 50% thicker than most.
Ingenuity - Engineered to exceed expectations
Don’t let the simple design and installation process fool you, the ERGO-Series is jam-packed with barrel sauna innovation. Go ahead and splash the water, these beautiful outdoor spaces are built to thrive with water! It begins with industry-leading 1-7/8” wide and 1/8” thick stainless steel barrel bands that compress the massive staves and create your wellness retreat. Then, a watertight DIY shingle kit (a necessity for every barrel sauna) with side-mounted drip edges provides exceptional rainwater management. Inside the barrels are dual floor drains. One is purposefully placed under the sauna heater for your water-tossing pleasure. A second drain is near the door, where cold plunge or pool water may collect. Should this barrel shift out of level, these dual floor drains have you covered.
Illumination – Inside and out
Illuminating your barrel showcases the beauty of the wood and enhances your sauna experience. Only low-voltage and waterproof LED lighting will do. SaunaLife provides a superior white LED lighting system that is Wi-Fi app-based and allows one to set the ideal scene prior to entering the sauna. A hand-held remote control is also provided for on/off/dim operation. SaunaLife’s white LED fixture is heat and water certified (IP67) and is dotless so it provides an enchanting, even glow. For the ultimate backyard sauna party attraction, consider adding E MOOD Lighting Package for both the inspirational and relaxing visual effects that an infinite range of color affords.
Beauty – A compliment to most any outdoor oasis
SaunaLife sources the highest quality Nordic Spruce and dries it to a rich golden color that accentuates its distinctive grain and rustic tight-knot charm. The barrel interior benefits from ergonomically designed benches and backrests of ultra-smooth Thermo-Aspen, a grade-A wood species that is rich in color, and free from knots. A complimentary bottle of paraffin oil, a natural wax, is provided to enrich and preserve the interior luster.
The MODEL E8G home sauna is designed by SaunaLife and precision-crafted in Northern Europe where sauna bathing is a healthy part of everyday life. Enjoy a lifetime of wellness in your own backyard and Live the SaunaLife!
