Features

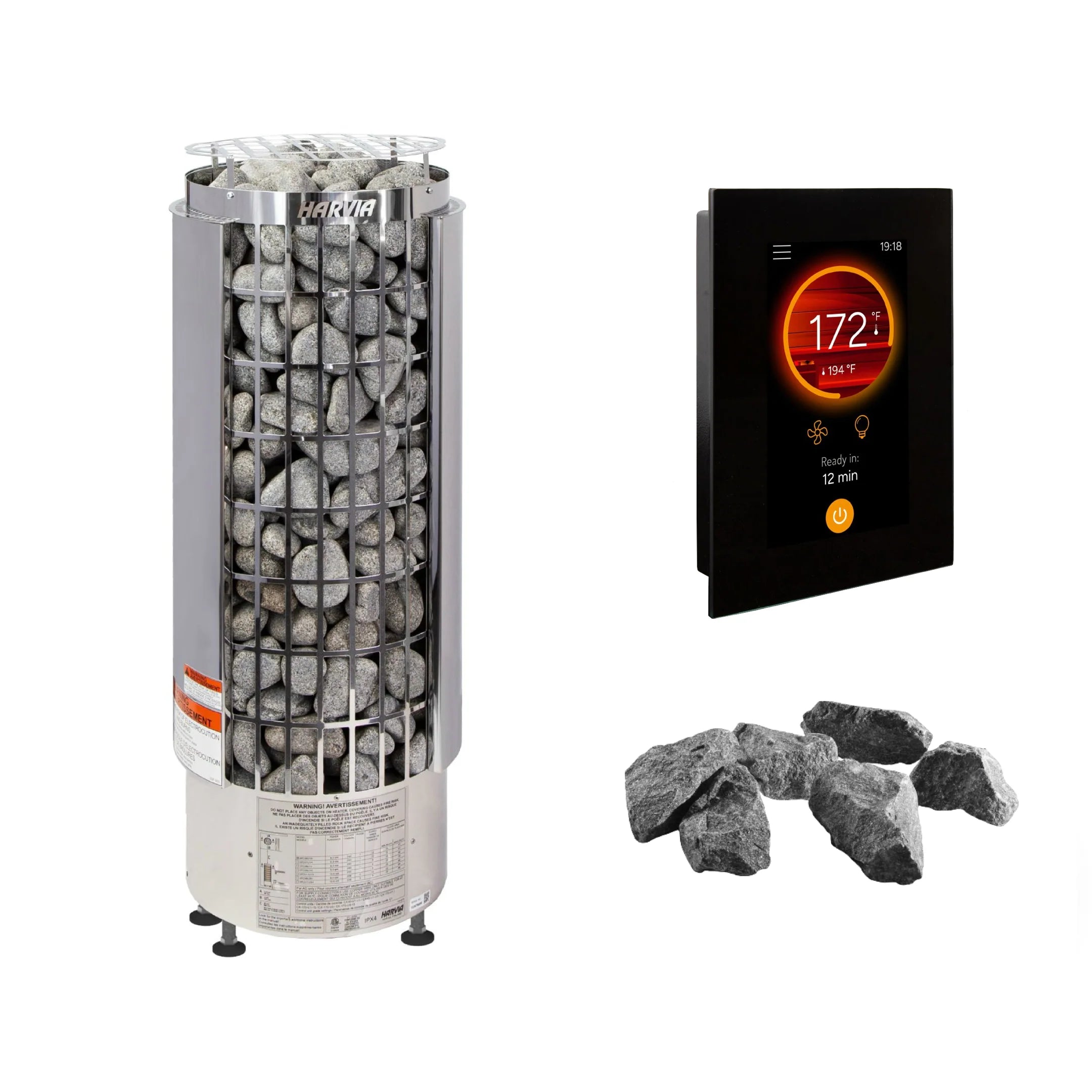

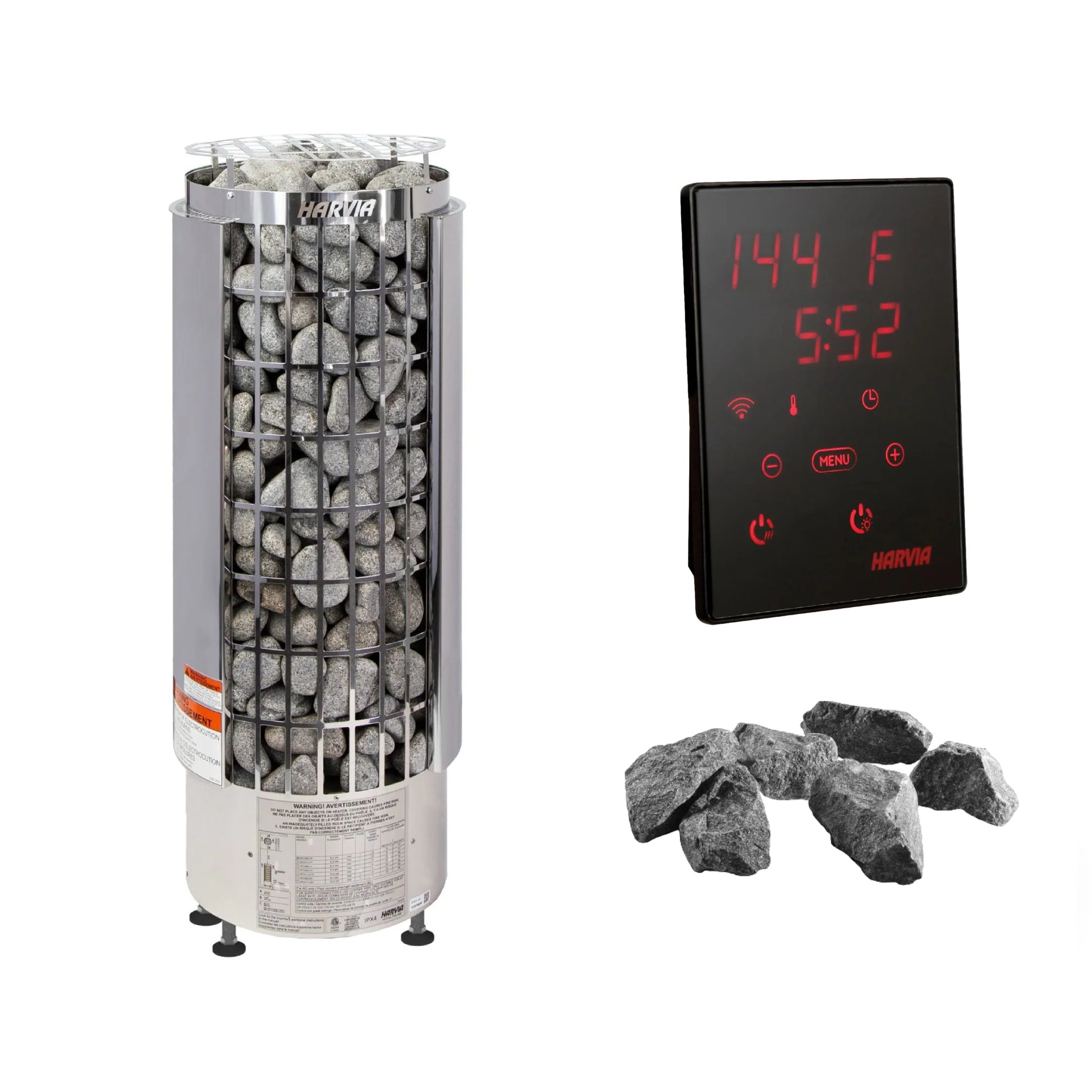

Harvia Cilindro PC110E 10.5kW Electric Sauna Heater Package
- Side-wall or corner of room install
- Stainless steel construction
- 10.5kW
- For sauna rooms from 141 to 636 cu. ft.
- AC3000 - 264 lbs of Stone Capacity - Split Face (5-10 cm) - (Includes 6 boxes)
- Includes Xenio CX45-U1-U3-XW or Fenix FX45-U1-U3-XC
- Stainless Steel elements
- Direct rock-to-heating element contact
- Industrial grade, serviceable heating elements
- Designed, engineered, and made in Finland
- Dimensions: 16"W (406mm) x 15"D (381mm) x 45"H (1143mm)
- 2-Year Warranty (Consumer Use)
Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
Harvia Xenio CX45-U1-U3-XW
- Modern control unit that is precise and easy
- Compatible with the Club, Spirit, Cilindro, Virta, and Virta Pro Series Sauna Heaters
- Stylish touch control panel
- Wi-fi connectivity for remote control and monitoring
- Comprehensive set of functions: control operating time, temperature, lighting, and fan from the control panel
- Control panel operating temperature range 104-194 °F
- Surface of flush-mounted
- Installs inside or outside the sauna room
- Dimensions: 3.4"W x 1.0"D x 4.4"H
Fenix FX45-U1-U3-XC Digital Sauna Control with Wi-Fi
- Controls the sauna heater, lighting, and ventilation
- Intelligent user interface that is precise and easy
- High-quality glass screen control panel
- Learns with AI and adapts to the performance of your sauna heater
- Wi-fi connectivity for remote control and monitoring
- Control panel operating temperature range from 104-194°F
- Surface of flush-mounted installation
- Installs inside or outside the sauna room
- Dimensions: 3.4"W (8.6 cm) x 1"D (2.5 cm) x 4.4"H (11.2 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)
Harvia AC3000 Split-Face Sauna Stones
- Olivine diabase sauna stones
- Split-face
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Specifications
| Harvia Cilindro PC110E 10.5kW Sauna Heater at 240V 1PH Model |
| Model |
Cilindro PC110E |
| Kilowatt Rating (KW) |
10.5 KW |
| Primary Fuel |
Electric |
| Minimum Adjusted Cubic Feet |
141 |
| Maximum Adjusted Cubic Feet |
636 |
| Voltage |
240 |
| Phase |
1 |
| Nominal Amps |
43.75 Amps |
| Heater Weight |
46.3 lbs |
| Shipping Weight with Sauna Stones |
310.3 lbs |
| Width In Inches |
16" (406mm) |
| Depth In Inches |
15" (381mm) |
| Height In Inches |
45" (1143mm) |
| Harvia Xenio CX45-U1-U3-XW Specifications |
| Model |
CX45-U1-U3-XW |
| Maximum Output Kilowatt Rating |
10.8 kW |
| Voltage |
240 |
| Phase |
1 |
| Temperature Adjustment Range |
104–194°F |
| Pre-Setting Time Adjustment Range |
0–12 Hours |
| Width |
3.4" (8.6 cm) |
| Depth |
1" (2.5 cm) |
| Height |
4.4" (11.2 cm) |
| FX45-U1-U3-XC Specifications |
| Model |
FX45-U1-U3-XC |
| Maximum Output Kilowatt Rating |
10.8 / 15 kW |
| Voltage |
240 / 208 |
| Phase |
1 / 3 |
| Temperature Adjustment Range |
104–194°F |
| Pre-Setting Time Adjustment Range |
0–12 Hours |
| Width |
3.4" (8.6 cm) |
| Depth |
1" (2.5 cm) |
| Height |
4.4" (11.2 cm) |
Includes
Harvia Cilindro PC110E 10.5kW Electric Sauna Heater
- Sauna heater
- Installation and operation manual
- 2-Year Warranty (Consumer Use)
Harvia Xenio CX45-U1-U3-XW
- Digital Control
- Data Cable
- Temperature Sensor
- Power Unit
- Installation and Operation Manual
- Limited Warranty
Fenix FX45-U1-U3-XC
- Control Panel
- Temperature Sensor
- Please Note: If the sensor comes with the heater, you must install per the instructions in the heater manual.
- Power Unit
- Data Cable
- Installation Materials
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Harvia AC3000 Split-Face Sauna Stones
- 44 lb box of 2" to 4" (5-10 cm) sauna stones
Manual
Harvia Cilindro PC110E 10.5kW Electric Sauna Heater
Harvia Xenio CX45-U1-U3-XW
Fenix FX45-U1-U3-XC
Harvia AC3000 Split-Face Sauna Stones
Description

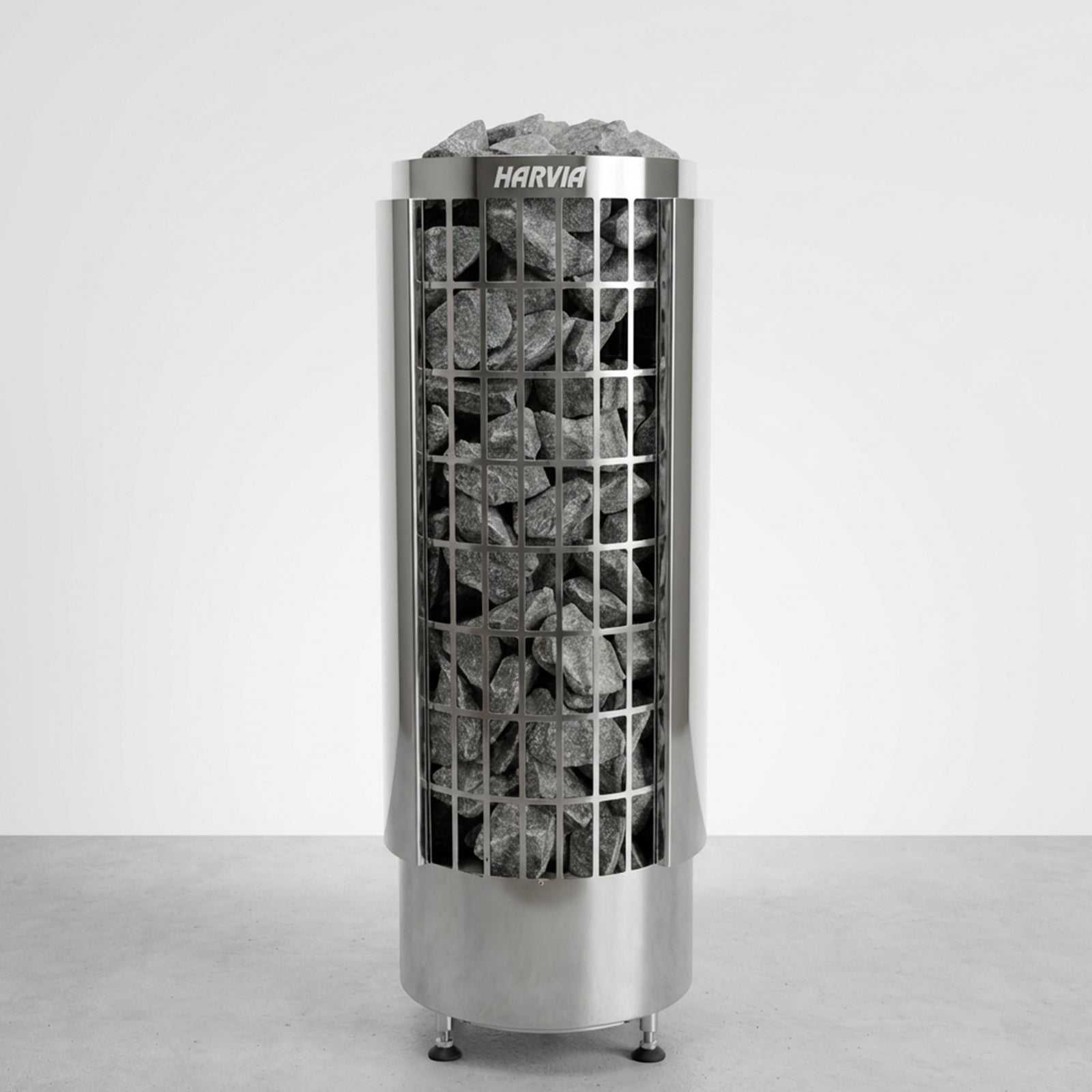

Harvia Cilindro PC110E 10.5kW Electric Sauna Heater
Harvia Cilindro PC110E, a modern floor-standing, stainless steel, pillar-style electric sauna heater, is engineered to power sauna rooms up to 636 cubic feet (CF).
Harvia Cilindro PC110E, a modern steel pillar style sauna heater available in 240V single phase, is engineered to power sauna rooms up to 636 cubic feet (CF). The Harvia Cilindro sauna heater contains a massive amount of stones. Thanks to the grate-like outer shell, each bather can adjust the nature of the steam: soft when throwing water onto the side of the heater and sharp when throwing water straight on top of the stone pillar. Cilindro is impressive to both look at and experience.
The Harvia Cilindro PC110E sauna heating unit required Xenio control for operation is sold separately.
Harvia Xenio CX45-U1-U3-XW
The Harvia Xenio CX45-U1-U3-XW is a modern sauna control unit with Wi-Fi capabilities, allowing users to easily manage their sauna experience from a smartphone or tablet. It features an intuitive touch screen interface, enabling precise control of temperature, lighting, and operating time. With its sleek design and seamless connectivity, the Xenio CX45-U1-U3-XW offers convenience and flexibility for an enhanced sauna experience.
Fenix FX45-U1-U3-XC
The Harvia Fenix FX45-U1-U3-XC is a modern sauna control unit with Wi-Fi capabilities, allowing users to easily manage their sauna experience from a smartphone or tablet. It features an intuitive touch screen interface, enabling precise control of temperature, lighting, and operating time.
The Harvia Fenix FX45-U1-U3-XC is a modern sauna control unit with Wi-Fi capabilities, allowing users to easily manage their sauna experience from a smartphone or tablet. It features an intuitive touch screen interface, enabling precise control of temperature, lighting, and operating time. With its sleek design and seamless connectivity, the Fenix FX45-U1-U3-XC offers convenience and flexibility for an enhanced sauna experience.
Harvia AC3000 Split-Face Sauna Stones
The Harvia AC3000 5-10 cm sauna stones are suitable for all-electric and wood-burning Harvia sauna heaters.
Only available with the purchase of a Harvia sauna heater or stove.
Genuine Harvia sauna stones are selected according to old traditions and convey a genuine sauna atmosphere. Harvia sauna stones provide good and soft heat. Split-face sauna stones are the only correct stones for electric heaters and woodburning stoves because they can store lots of heat and the water evaporates efficiently from the wide surface of the fracture. Angular split-face stones also allow for loose placement of the stones, which is the most important requirement, particularly in electric heaters in order to make it possible for the heat to be conveyed to the sauna room between the hot stones and heating elements. Good air circulation in the stone space makes the electric heating elements last for as long as possible.
