Features

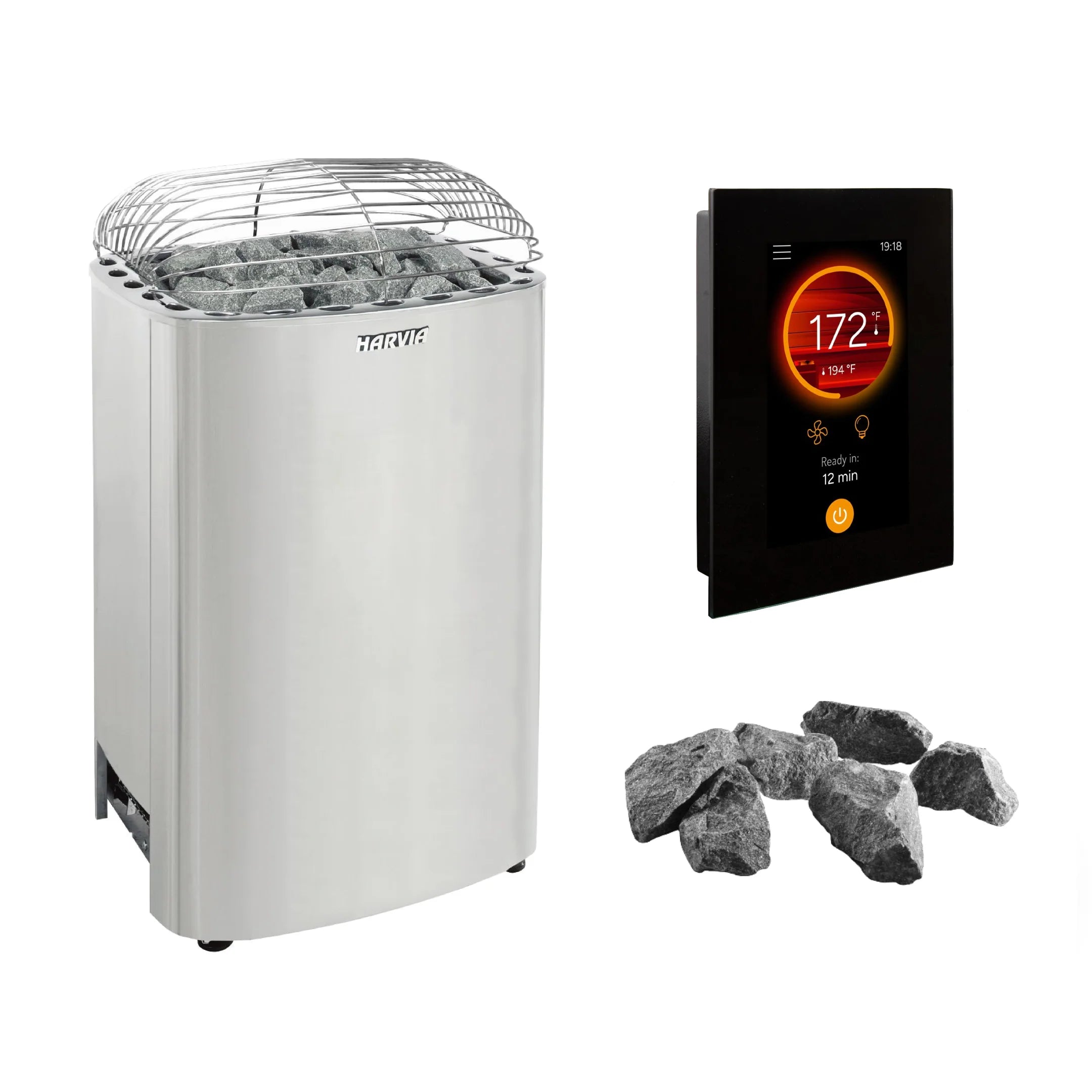

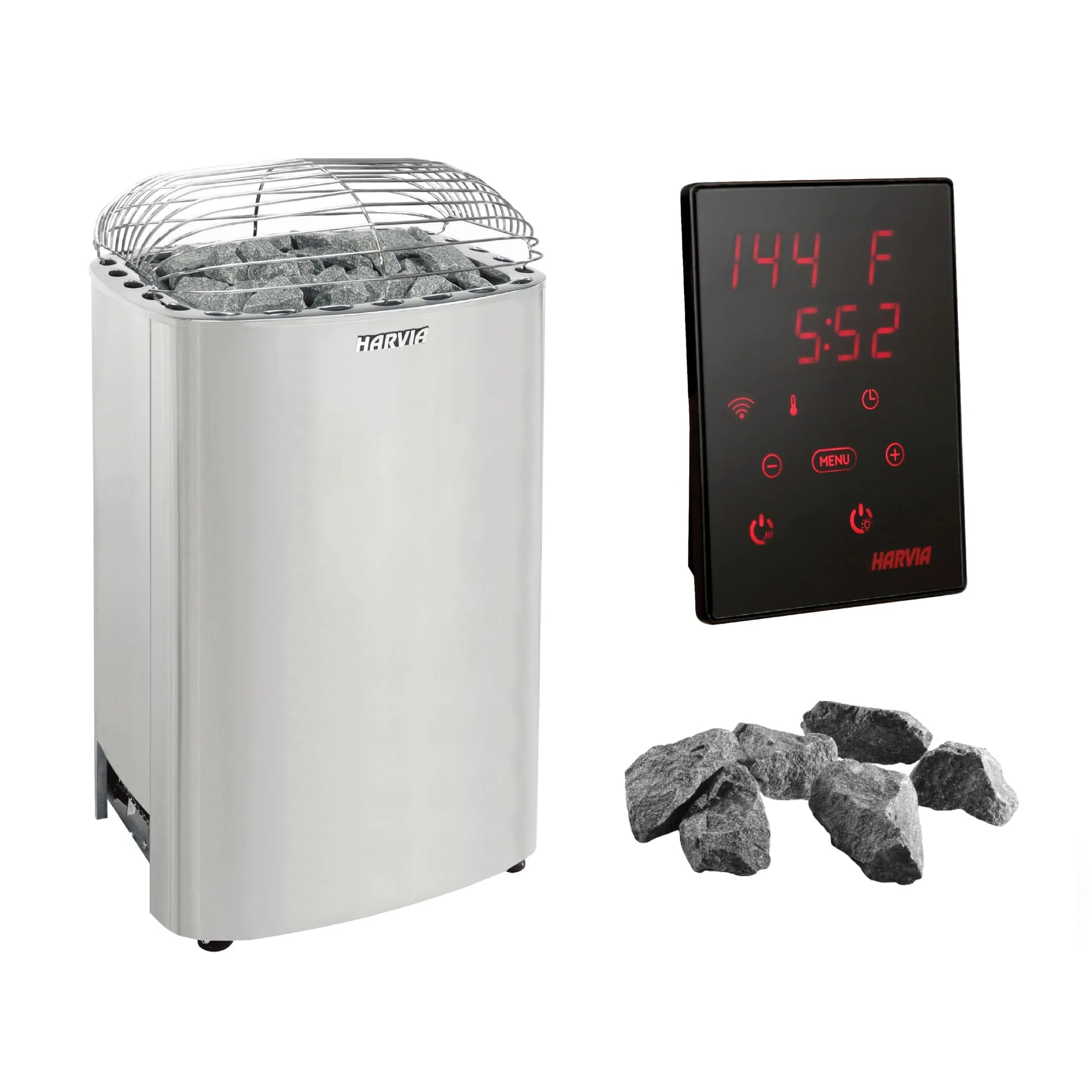

Harvia Club K12.5G 240V/208V Sauna Heater
- Floor model
- Deluxe stainless steel interior and exterior
- 12.5kW
- For sauna rooms from 494 to 742 cu. ft.
- AC3000 - 132 lbs of stone Capacity - Split Face (5-10 cm) - (Includes 3 boxes)
- Includes Xenio CX45-U1-U3-XW or Fenix FX45-U1-U3-XC
- Multi-layer construction for cooler surface temperature and greater safety
- Rocks have direct contact with electric elements to filter harsh heat
- Optional 24-Hour time clock
- UL tested and listed
- ETL certified
- Designed, engineered, and made in Finland
- Dimensions: 19.9"W (505mm) x 16.9"D (429mm) x 27.6"H (701mm)
- 2-Year Warranty (Consumer Use)
-
Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
Harvia Xenio CX45-U1-U3-XW
- Modern control unit that is precise and easy
- Compatible with the Club, Spirit, Cilindro, Virta, and Virta Pro Series Sauna Heaters
- Stylish touch control panel
- Wi-fi connectivity for remote control and monitoring
- Comprehensive set of functions: control operating time, temperature, lighting, and fan from the control panel
- Control panel operating temperature range 104-194 °F
- Surface of flush-mounted
- Installs inside or outside the sauna room
- Dimensions: 3.4"W x 1.0"D x 4.4"H
Fenix FX45-U1-U3-XC Digital Sauna Control with Wi-Fi
- Controls the sauna heater, lighting, and ventilation
- Intelligent user interface that is precise and easy
- High-quality glass screen control panel
- Learns with AI and adapts to the performance of your sauna heater
- Wi-fi connectivity for remote control and monitoring
- Control panel operating temperature range from 104-194°F
- Surface of flush-mounted installation
- Installs inside or outside the sauna room
- Dimensions: 3.4"W (8.6 cm) x 1"D (2.5 cm) x 4.4"H (11.2 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)
Harvia AC3000 Split-Face Sauna Stones
- Olivine diabase sauna stones
- Split-face
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Specifications
| Harvia Club K12.5G 240V/208V Sauna Heater Model |
| Model |
Club K12.5G |
| Kilowatt Rating (KW) |
12.5 kW |
| Primary Fuel |
Electric |
| Minimum Adjusted Cubic Feet |
494 |
| Maximum Adjusted Cubic Feet |
742 |
| Voltage |
240V/208 |
| Phase |
1PH/3 PH |
| 240V, Single Phase Amperage |
52.7 Amps (2-CIRCUITS) |
| 208V, 3-Phase Amperage |
34.1 Amps |
| Heater Weight |
60 lbs |
| Shipping Weight with Sauna Stones |
192 lbs |
| Width In Inches |
19-7/8" (505mm) |
| Depth In Inches |
16.9" (429mm) |
| Height In Inches |
27.6" (701mm) |
| Harvia Xenio CX45-U1-U3-XW Specifications |
| Model |
CX45-U1-U3-XW |
| Maximum Output Kilowatt Rating |
10.8 kW |
| Voltage |
240 |
| Phase |
1 |
| Temperature Adjustment Range |
104–194°F |
| Pre-Setting Time Adjustment Range |
0–12 Hours |
| Width |
3.4" (8.6 cm) |
| Depth |
1" (2.5 cm) |
| Height |
4.4" (11.2 cm) |
| FX45-U1-U3-XC Specifications |
| Model |
FX45-U1-U3-XC |
| Maximum Output Kilowatt Rating |
10.8 / 15 kW |
| Voltage |
240 / 208 |
| Phase |
1 / 3 |
| Temperature Adjustment Range |
104–194°F |
| Pre-Setting Time Adjustment Range |
0–12 Hours |
| Width |
3.4" (8.6 cm) |
| Depth |
1" (2.5 cm) |
| Height |
4.4" (11.2 cm) |
Includes
Harvia Club K12.5G 240V/208V Sauna Heater
- K12.5G sauna heater
- Installation and operation manual
- 2-Year Warranty (Consumer Use)
Harvia Xenio CX45-U1-U3-XW
- Digital Control
- Data Cable
- Temperature Sensor
- Power Unit
- Installation and Operation Manual
- Limited Warranty
Fenix FX45-U1-U3-XC
- Control Panel
- Temperature Sensor
- Please Note: If the sensor comes with the heater, you must install per the instructions in the heater manual.
- Power Unit
- Data Cable
- Installation Materials
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Harvia AC3000 Split-Face Sauna Stones
- 44 lb box of 2" to 4" (5-10 cm) sauna stones
Manual
Harvia Club K12.5G 240V/208V Sauna Heater
Harvia Xenio CX45-U1-U3-XW
Fenix FX45-U1-U3-XC
Harvia AC3000 Split-Face Sauna Stones
Description
Harvia Club K12.5G 240V/208V Sauna Heater
The Harvia Club K12.5G stands as a testament to superior Finnish sauna craftsmanship, offering an exceptional heating solution for those seeking an authentic sauna experience in larger spaces. This powerful 12.5kW sauna heater is specifically engineered for sauna rooms ranging from 494 to 742 cubic feet, making it an ideal choice for spacious home installations, health clubs, hotels, and day spas.
Authentic Finnish Design and Heritage
Rooted in Finland’s rich sauna heritage, the Harvia Club K12.5G 12.5 kW sauna heater delivers a truly authentic sauna experience. It blends precision modern engineering with the time-honored traditions of Finnish bathing, creating a heating solution that stands out for quality and performance. Every detail of this 240 V Harvia electric sauna heater reflects Finland’s world-class expertise in sauna design and craftsmanship.
Designed, developed, and produced in Finland, the Harvia Club K12.5G sets the standard for advanced sauna heater technology. The Finnish approach to sauna design emphasizes not just functionality, but the creation of an atmosphere that promotes relaxation, wellness, and social connection — values that have been perfected over generations.
Powerful Performance for Large Saunas
With a powerful 12.5 kW output, the Harvia Club K12.5G sauna heater delivers strong, evenly distributed heat throughout large sauna rooms. Designed specifically for spacious saunas, it ensures every corner experiences consistent, comfortable warmth for an optimal sauna session.
The floor model design provides stability and optimal heat distribution, making it particularly well-suited for commercial applications and larger residential installations. Whether you're outfitting a private home spa or a commercial facility, this 240V sauna heater delivers the performance and reliability you need.
Exceptional Heat Distribution and Stone Capacity
A key feature of the Harvia K12.5G electric sauna heater is its substantial rock capacity. The unit holds at least 132 lb of sauna stones (3 boxes of AC3000), which sit directly on the heating elements to provide steady, even heat. This abundant stone load is essential for delivering the classic Finnish sauna experience, releasing warmth gradually and consistently throughout the room.
The Harvia sauna stones play a vital role in moderating temperature and creating the soft, enveloping steam released when water is poured over the heated stones. With its substantial stone capacity, the Harvia Club K12.5G allows for optimal steam generation and heat retention, enhancing every sauna session.
Versatile Power Options
Understanding that different installations have different electrical requirements, the Harvia Club K12.5G offers flexible power configurations. Choose from the electric sauna heater 240V single-phase option K12.5G-U1 for residential applications or opt for the 208V 3-phase model K12.5G-U3 for commercial use. This 240V/208V sauna heater versatility ensures compatibility with various electrical systems, making installation a simple process whether you're setting up a home sauna or equipping a professional facility.
The option for 208V/3PH makes this unit particularly attractive for commercial establishments that require robust, efficient heating solutions capable of withstanding frequent use.
Advanced Technology and Control
Featuring the latest in sauna heater technology, the Harvia K12.5G represents the cutting edge of sauna innovation. The unit is designed to work with advanced sauna control systems, including options for the Harvia sauna heater with Wi-Fi control capabilities, allowing users to remotely manage their sauna sessions with unprecedented convenience.
Note that the Harvia K12.5G sauna heating unit requires a Xenio control for operation, which is sold separately. This sophisticated control system ensures precise temperature management and optimal energy efficiency throughout each sauna session.
Durability and Safety
Crafted in Finland from corrosion-resistant stainless steel, the Harvia Club K12.5G electric sauna heater is built to deliver long-lasting, safe, and worry-free performance. Built to endure intense heat and heavy moisture, it thrives effortlessly in the challenging conditions of a sauna.
The unit is ETL certified, meeting rigorous safety standards for electrical appliances. This certification provides peace of mind that your sauna heater meets or exceeds industry safety requirements, protecting both users and property.
Long-Term Performance Excellence
Harvia Club series electric sauna heaters are renowned for providing years of exceptional performance, safety, and efficiency. The K12.5G model continues this tradition, offering reliable operation that requires minimal maintenance while delivering consistent results session after session.
This combination of durability and performance makes the Harvia Club K12.5G a sound investment for anyone serious about creating an authentic, high-quality sauna experience in their large sauna space.
Harvia Xenio CX45-U1-U3-XW
The Harvia Xenio CX45-U1-U3-XW is a modern sauna control unit with Wi-Fi capabilities, allowing users to easily manage their sauna experience from a smartphone or tablet. It features an intuitive touch screen interface, enabling precise control of temperature, lighting, and operating time. With its sleek design and seamless connectivity, the Xenio CX45-U1-U3-XW offers convenience and flexibility for an enhanced sauna experience.
Fenix FX45-U1-U3-XC
The Harvia Fenix FX45-U1-U3-XC is a modern sauna control unit with Wi-Fi capabilities, allowing users to easily manage their sauna experience from a smartphone or tablet. It features an intuitive touch screen interface, enabling precise control of temperature, lighting, and operating time.
The Harvia Fenix FX45-U1-U3-XC is a modern sauna control unit with Wi-Fi capabilities, allowing users to easily manage their sauna experience from a smartphone or tablet. It features an intuitive touch screen interface, enabling precise control of temperature, lighting, and operating time. With its sleek design and seamless connectivity, the Fenix FX45-U1-U3-XC offers convenience and flexibility for an enhanced sauna experience.
Harvia AC3000 Split-Face Sauna Stones
The Harvia AC3000 5-10 cm sauna stones are suitable for all-electric and wood-burning Harvia sauna heaters.
Only available with the purchase of a Harvia sauna heater or stove.
Genuine Harvia sauna stones are selected according to old traditions and convey a genuine sauna atmosphere. Harvia sauna stones provide good and soft heat. Split-face sauna stones are the only correct stones for electric heaters and woodburning stoves because they can store lots of heat and the water evaporates efficiently from the wide surface of the fracture. Angular split-face stones also allow for loose placement of the stones, which is the most important requirement, particularly in electric heaters in order to make it possible for the heat to be conveyed to the sauna room between the hot stones and heating elements. Good air circulation in the stone space makes the electric heating elements last for as long as possible.
FAQs
Harvia Club K12.5G 240V/208V Sauna Heater
What size sauna room is suitable for the Harvia Club K12.5G?
The Harvia Club K12.5G is designed for large saunas ranging from 494 to 742 cubic feet. This makes it ideal for spacious residential installations as well as commercial facilities like health clubs, hotels, and day spas.
Is the Harvia Club K12.5G designed for commercial or residential use?
The Harvia Club K12.5G is suitable for both commercial and residential applications. The 208V 3-phase option is particularly well-suited for commercial use, while the 240V single-phase model works perfectly for home installations.
What is the power rating of the Harvia Club K12.5G heater?
The Harvia Club K12.5G delivers 12.5 kW of heating power, ensuring strong, even warmth across spacious sauna rooms. Its robust output provides consistent, comfortable heat for a superior sauna experience.
What voltage and phase options are available for this sauna heater?
The heater comes in two configurations:
- 240V single-phase K12.5G-U1 for residential use
- 208V 3-phase K12.5G-U3 for commercial applications
Both versions are compatible with a variety of electrical systems to accommodate different installation needs.
How many sauna stones are required for the K12.5G model?
The Harvia Club K12.5G requires a minimum of 132 pounds of sauna stones, which equals approximately 3 boxes of AC3000 stones. This large stone capacity ensures consistent heat distribution and optimal steam generation when water is poured over the heated stones.
What makes the Harvia Club K12.5G ideal for continuous operation?
The K12.5G is built with durable, corrosion-resistant stainless-steel components that withstand demanding sauna conditions.
Its robust Finnish engineering ensures years of maintenance-free operation, making it reliable for frequent use in commercial settings.
What safety features does the Harvia Club K12.5G offer?
The Harvia Club K12.5G is ETL certified, meeting rigorous safety standards for electrical appliances.
Its corrosion-resistant stainless-steel construction and Finnish engineering ensure safe operation in high-temperature, high-humidity sauna environments.
How is the Harvia Club K12.5G controlled?
The K12.5G requires a Xenio control unit for operation, which is sold separately. Advanced sauna control options are available, including a sauna heater with Wi-Fi control capabilities for convenient remote management of sauna sessions.
What materials are used in the construction of the K12.5G?
The Harvia Club K12.5G is constructed from durable, corrosion-resistant stainless-steel components. These premium materials are specifically chosen to withstand the harsh conditions inside sauna rooms while providing years of reliable performance.
Where is the Harvia Club K12.5G manufactured?
The Harvia Club K12.5G is designed, engineered, and made in Finland. This Finnish heritage ensures authentic sauna craftsmanship and adherence to the highest standards of quality and performance.
Does the Harvia Club K12.5G include a warranty?
Yes. The Harvia Club K12.5G comes with a 2‑year limited warranty for consumer (residential) use. For business or commercial settings, the warranty usually covers one year under Harvia’s policy.
